Speed Transmitters

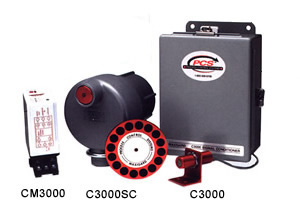

Maxigard C3000 Series Signal Transmitter

Typical Application: The C3000 Signal Transmitter converts process speed into a 4-20 MA or 0-10 VDC analog signal for use with a PLC, DCS, or stand alone controller.

FUNCTION:

  • Converts rotational speed into analog 4-20 MA or 0-10 VDC outputs
  • Provides closed loop signal to variable speed drives
  • Provides tach feedback signal to PLC, DCS or digital display meter

ADVANTAGES:

  • Up to 1 inch gap tolerance between sensor and target
  • Sensor is not affected by material buildup or moisture
  • Sensor signal can be run up to 10,000 feet
  • Operating range from 5 RPM to 10,000 RPM
  • By monitoring the driven shaft, feedback signal indicates slip in the drive system
  • Complete system includes sensor, target, circuit and enclosure
  • Five Year Warranty

APPLICATIONS:

  • Tach Feedback Loops
  • PLC Interface
  • DCS Interface
  • Chart Recorder Interface
  • Screw Conveyors
  • Pumps
  • Conveyors
  • Rotary Airlocks
  • Feed Rolls
  • Pumps
  • Industrial Fans/Blowers
2 Download C3000 Series / CM3000 Product Data Sheet
1 Download C3000 Installation Instructions
Download C3000SC-1 Installation Instructions
Download CM3000 Installation Instructions
Request a Quote

Converts Shaft Rotation to Linear Outputs 4/20 MA or 0-10 VDC

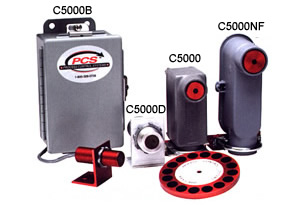

Maxigard C5000 Series Pulse Transmitter

Converts Rotational or Linear Motion
Into Digital Square Wave Pulses

FUNCTION:

  • Monitors all speed ranges to 10,000 RPM
  • Solid state pulse output
  • 6 to 24 VDC sinking or sourcing output
  • Pulse width adjustment
  • LED indicator for sensor installation
  • Split collar magnetic wrap available
  • Pulse dividing available
  • Complete system includes: target disc, sensor, circuit and enclosure
2 Download C5000 Series Product Data Sheet
1 Download C5000 Installation Instructions
Request a Quote

Converts Shaft Rotation to Linear Outputs4/20 MA or 0-10 VDC
